FLEXHEAD

FLEX© PPRC

Heating and hot water systems used in fresh water polypropylene random copolymer (pprc) pipes ultra-high molecular structure due to a high level of use and durability.

FLEX© PPRC

FLEX© PPRC – Poly Propylene Random Co-polymer can provide very high performance even under high and low temperatures and pressure conditions. Heating and hot water systems used in fresh water polypropylene random copolymer (pprc) pipes ultra-high molecular structure due to a high level of use and durability.

FLEX© PPRC

PROPERTIES

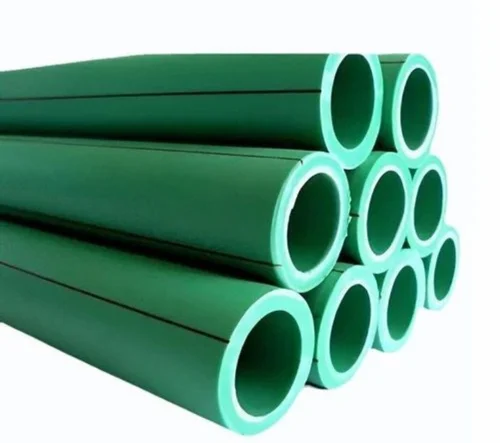

PPRC polypropylene random Copolymer stands for, can provide very high performance even under high and low temperatures and pressure conditions. Heating and hot water systems used in fresh water polypropylene random copolymer (pprc) pipes ultra-high molecular structure due to a high level of use and durability. Briefly, PPR is a type of polypropylene plastic pipe that has some advantages over other plastic pipe used in residential and commercial plumbing (e.g. PVC and CVPC). The main advantages are stability, durability (up to 50 years) and leak resistance. Downsides are cost and need for specialized tools for making joints (the pipe is joined using a heat fusion welding rather than glues as for PVC pipes).

FLEX© HDPE

ADVANTAGES

Long-term service life

Environmental friendly

Excellent chemical stability

FLEX© HDPE

APPLICATIONS

Hot & cold water supply system

Chemical & agricultural uses.

Under flow heating pipe

STANDARDS

DIN 8077/8078

PRODUCT RANGE

Wall Thickness (mm)

Size (mm)	Outer Diameter	Wall Thickness
		PN – 16		PN – 20
		Min	Max	Min	Max
20	20.0 ~ 20.4	2.7	3.2	3.3	4.0
25	25.0 ~ 25.3	3.4	4.1	4.3	4.8
32	32.0 ~ 32.4	4.4	5.2	5.3	6.1
40	40.0 ~ 40.4	5.5	6.3	6.6	7.6
50	50.0 ~ 50.5	6.8	7.7	8.2	9.2
63	63.0 ~ 63.6	8.5	9.6	10.5	11.7
75	75.0 ~ 75.6	10.2	11.5	12.5	14.1
90	90.0 ~ 90.7	12.2	13.8	15.1	16.5
110	110.0 ~ 111.1	15.0	16.8	18.2	20.3

Established in 2019, the factory produces a wide range of pipes for water supply, sewerage, & irrigation, meeting international standards and custom client requirements. It also offers complete pipe-laying solutions with skilled manpower and modern equipment.
